Laminated Glass

THICKNESS:

• 6mm to 100mm

TYPES OF GLAS:

• Clear, ultraclear(low-iron), tinted
• Low-e, reflective

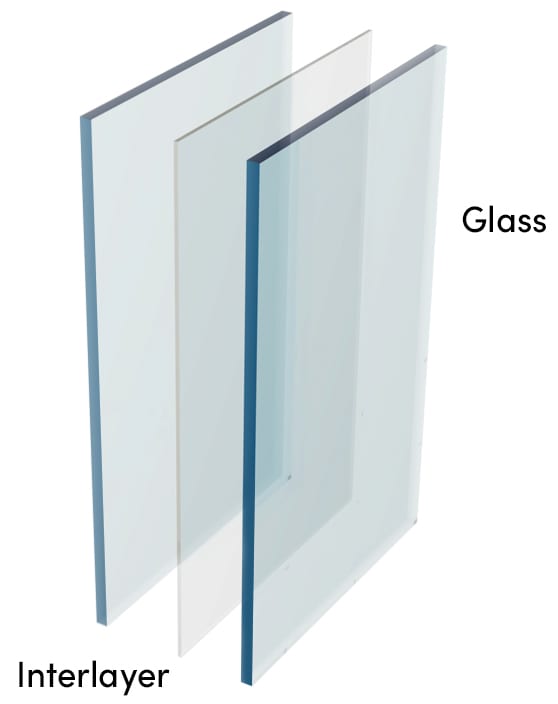

TYPES OF INTERLAYERS:

PVB, ionoplast, polyurethane

• Protects people and goods in the event of breakage, as the interlayer holds glass fragments together
• Meets safety glazing standards
• Blocks 99% of UV rays which cause fading and discolouration of interior coverings.
• Provides soundproofing that is superior to monolithic glass.
• Makes it possible to create unique glass designs with decorative interlayers such as Vanceva® (contact us for more information).

* Vanceva® is a trademark of Eastman Chemical Company.

• Minimum Size: 300 x 300mm
• Maximum Size: 3660 x 18000mm

America Standards:

• CAN/CGSB 2 12.1 classe 1 et 2. – Safety or Laminated Glass
• ASTM C1172 – Standard Specification for Laminated Architectural Flat Glass
• CPSC 16 CFR 1201 classe 1 et 2 – Safety Standard for Architectural Glazing Materials

Australian Standards:

• AS 1288 Glass in buildings – Selection and installation
• AS/NZ 2208 Safety glazing materials in buildings
• AS 4666 Insulating glass units
• AS/NZS 4667 Quality requirements for cut-to-size and processed glass
• AS 1170 Wind & Structural Design Actions

British & European Standards:

BS EN ISO 12543: Glass in building - Laminated glass and laminated safety glass

• Part 1: Definitions and description of component parts
• Part 2: Laminated safety glass
• Part 3: Laminated glass
• Part 4: Test methods for durability
• Part 5: Dimensions and edge finishing
• Part 6: Appearance

BS EN 14449: Glass in building - Laminated glass and laminated safety glass - Evaluation of conformity/Product standard

BS EN 12600: Glass in building – Pendulum test – Impact test method and classification for flat glass
